How to Install A Transducer Fish Finder?

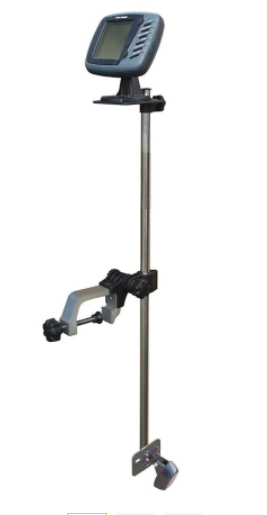

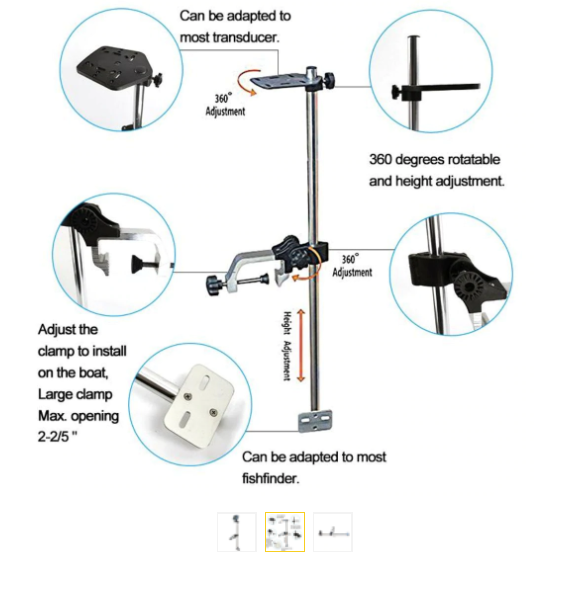

You can install the transducer in that little compartment underneath the kayak. There are 4x screws to secure it there. The transducer arm goes up through the scupper hole and pops out on the top side right behind the pedal drive unit. I have attached some pictures and a video to this email for your reference. See attached video for your guide.
