Replacement Pedal Drive Lock Clips Installation Guide

To install a replacement Pedal Drive Lock Clips for Pedal Pro Fish 2.5, 3.4, 3.6, 3.9 & 4.1m models (Flap Models Only) , you simply need to remove the screws from the old clips and screw in the replacement ones. Here are the detailed instructions:

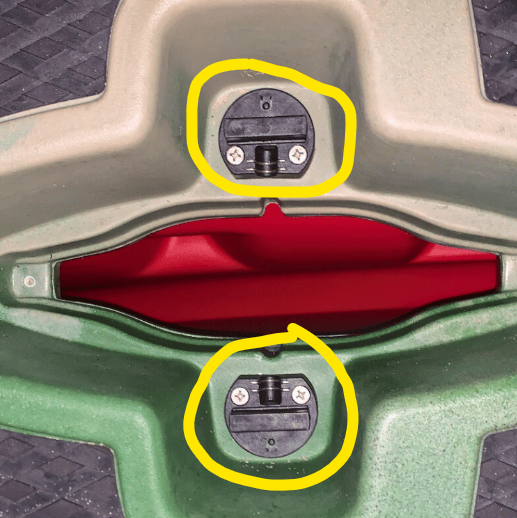

1. Locate the Screws: As shown in the photo below, you'll see two screws on each clip that need to be removed.

2. Remove the Old Clips: Use a screwdriver to unscrew the two screws on each clip and carefully remove the old clips from their positions.

3. Install the Replacement Clips: Align the new clips with the screw holes. Insert and tighten the screws to secure the new clips in place.

Please make sure the screws are tightened firmly but avoid over-tightening, as this could strip the screw holes.
